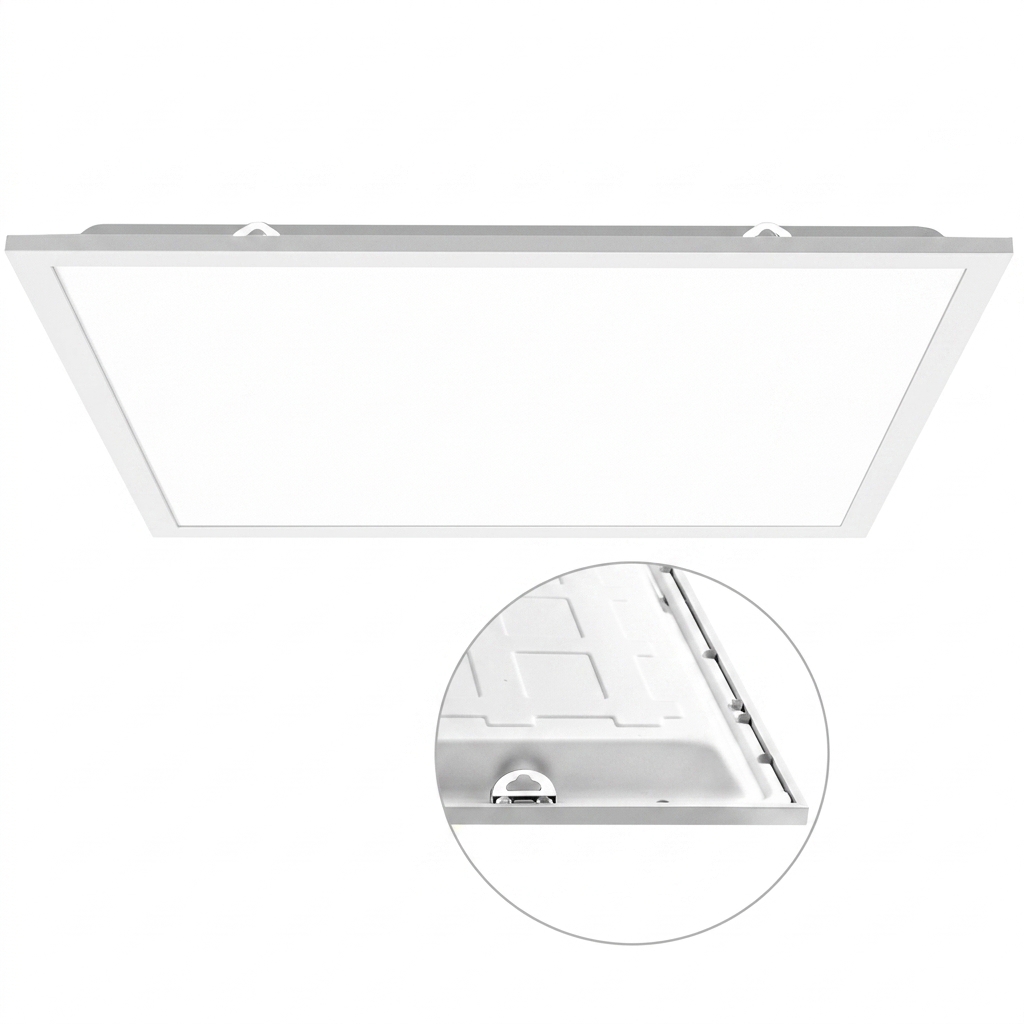

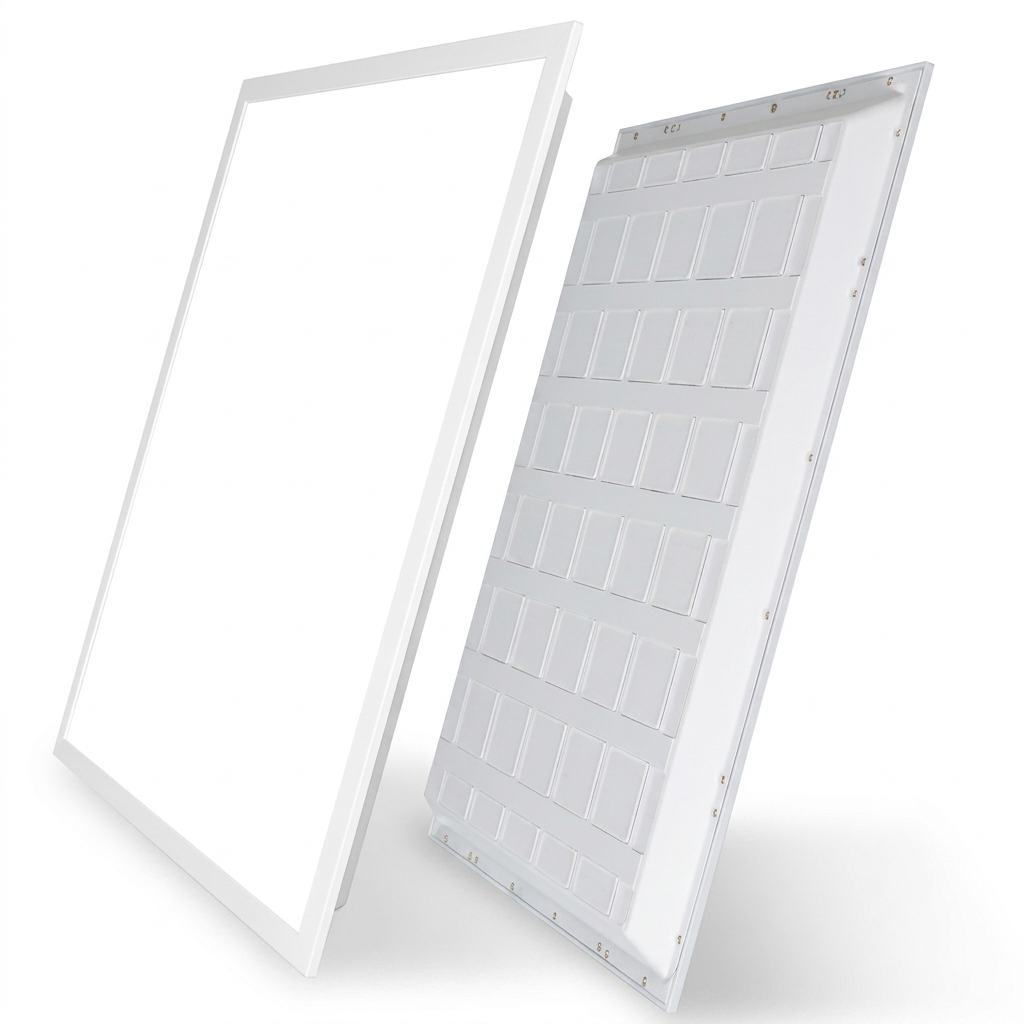

Commercial Backlit LED Panel Light | Non-Yellowing Ceiling Troffer for Office & Retail
Panel Light

Commercial Backlit LED Panel Light | Non-Yellowing Ceiling Troffer for Office & Retail

High-efficiency backlit LED panel light engineered with durable optical lenses over each LED chip to ensure uniform, high-lumen output without yellowing over time. Designed with superior heat dissipation and structural rigidity, making it a reliable, cost-effective replacement for traditional fluorescent troffers.

Key Specifications

    {pboot:if(High Lumen Output: Up to 100–120 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:30W/40W/50W/60W
    Size:590*590mm/620*620mm/300*1200mm/590*1190mm/600*1200mm
    Easy Install!='')}
  • check_circle High Lumen Output: Up to 100–120 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:30W/40W/50W/60W
    Size:590*590mm/620*620mm/300*1200mm/590*1190mm/600*1200mm
    Easy Install
    • {else}
  • No specifications available
    • {/pboot:if}
Inquire Now
Features
Product Name:  LED Panel Light Backlit
Input Voltage Range:   120V-277V AC
Life Span:              50,000+ Hours
Warranty:  5Years
Driver Brand:   LIFUD
Dimmable: 0-10V/DALI Dimmable for optional
Beam Angle: 120°
Materials:

solarcupid.com/core/extend/ueditor/themes/default/images/spacer.gif" data-word-image="file:///C:\Users\ADMINI~1\AppData\Local\Temp\ksohtml\clip_image17.png" style="background: url("https://www.solarcupid.com/core/extend/ueditor/lang/zh-cn/images/localimage.png") center center no-repeat; border: 1px solid rgb(221, 221, 221); float: none;"/>

Aluminum Frame+Steel Bottom plate +PC Diffuser
Color Tolerance:SDCM<5, Optional<3
Power Factor: >0.95
Lumen Output: 120lm/W
CRI (RA):  >80
LED Chips brand:   LUMILEDS/ SANAN
LED Type: SMD
Color Temperature:3000K / 4000K / 6500K
THD: <25%
Operating Temperature: -40 °C to +50 °C
IK rating: IK06
IP rating:  IP20
Protection class IEC: Safety class II
Installation: Recessed Mounted/Pendant Mounted
House Color: White
Reflector Color: Milky White
Surge Protection: 2KV
Relative Humidity:Up to 90% RH
UGR: <19 or <23

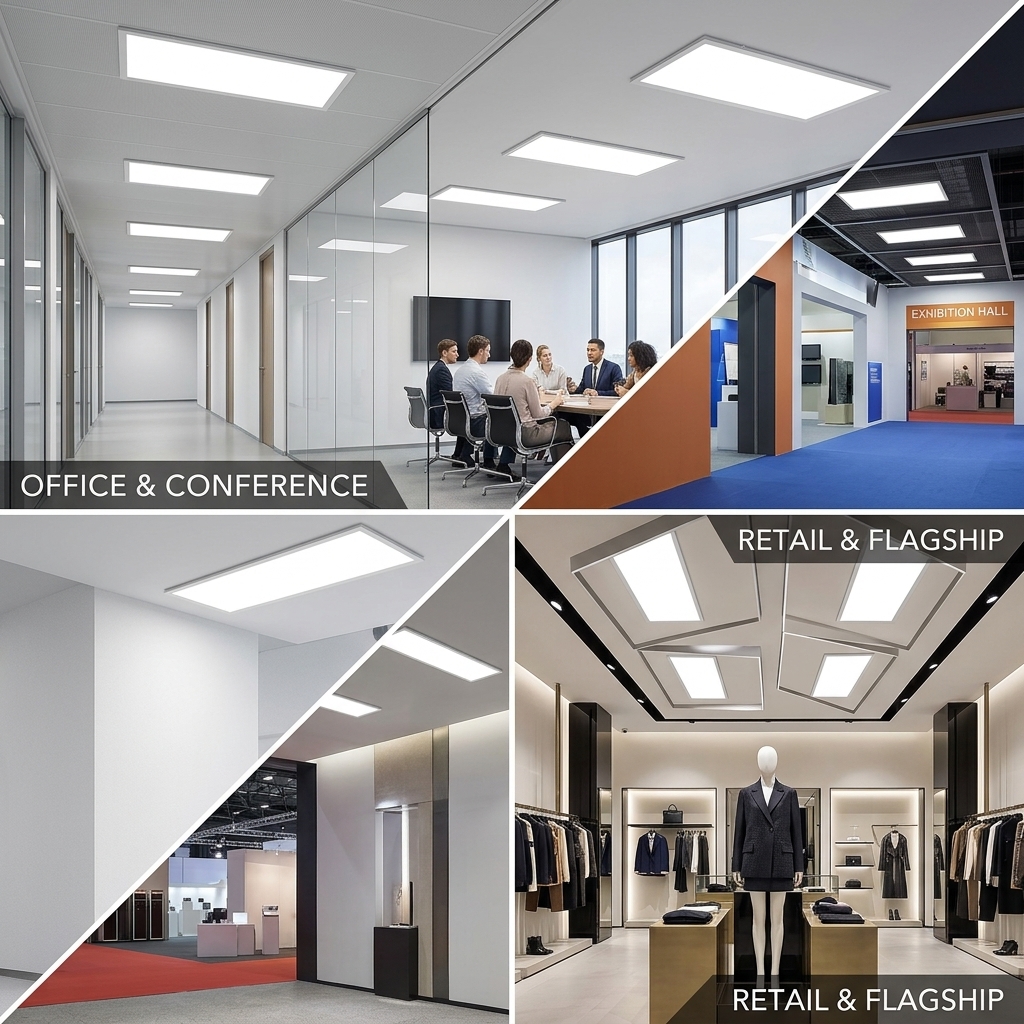

Application：

Brand flagship stores, shopping malls, supermarkets, exhibition halls, luxury hotels, conference rooms, office buildings, and public corridors.
