Frameless Side-Lit LED Panel Light | Borderless Commercial Ceiling Troffer
Panel Light

Frameless Side-Lit LED Panel Light | Borderless Commercial Ceiling Troffer

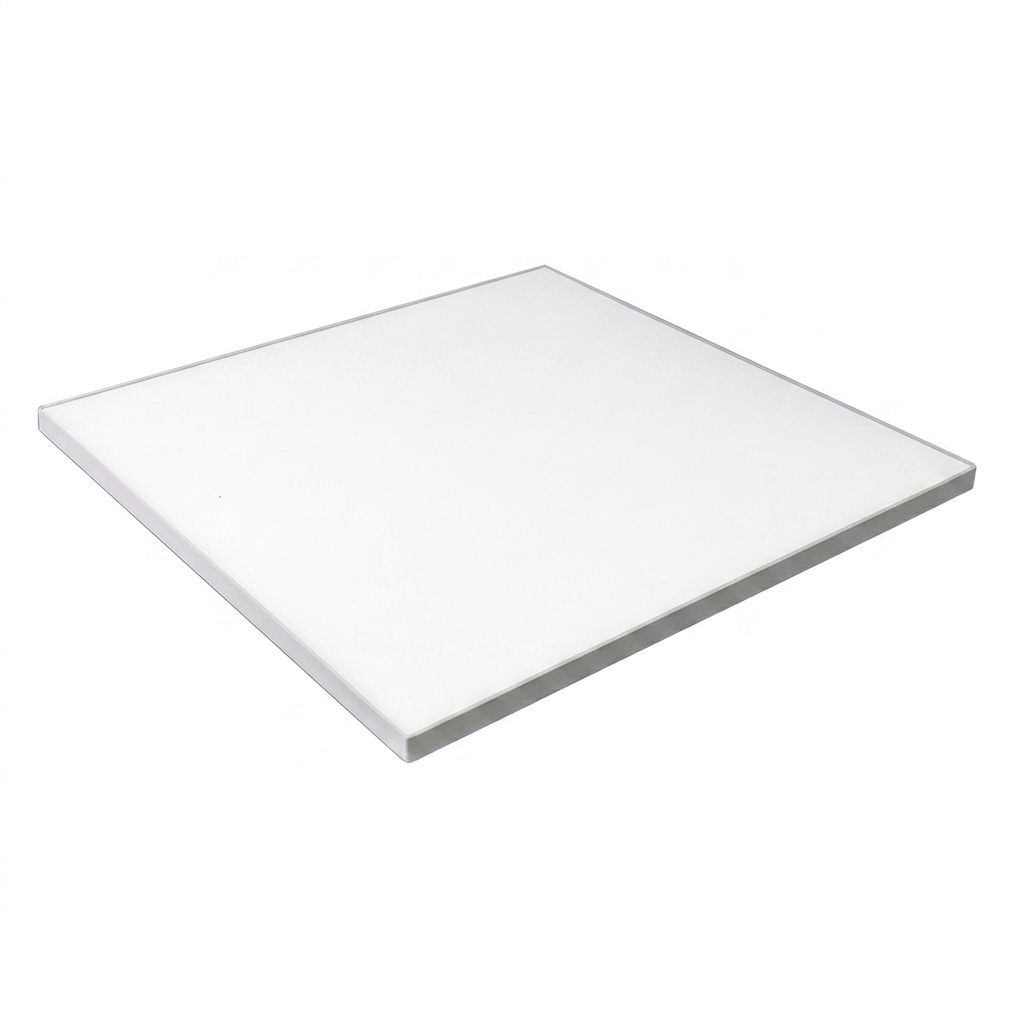

Contemporary frameless LED panel featuring side-lit optical engineering for an edge-to-edge illuminated surface. Provides uniform, glare-free light distribution with an ultra-clean visual profile that blends seamlessly into modern architectural ceilings.

Key Specifications

    {pboot:if(High Lumen Output: Up to 100–120 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:18W/40W/60W
    Size:300*300mm/590*590mm/590*1195mm/600*1200mm
    Easy Install!='')}
  • check_circle High Lumen Output: Up to 100–120 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:18W/40W/60W
    Size:300*300mm/590*590mm/590*1195mm/600*1200mm
    Easy Install
    • {else}
  • No specifications available
    • {/pboot:if}
Inquire Now
Product Name:  LED Frameless Panel Side Lit
Input Voltage Range:   220V-240V AC
Life Span:              50,000+ Hours
Warranty:  5Years
Driver Brand:   POKE /LIFUD
Dimmable: 0-10V/DALI Dimmable
Beam Angle: 120°
Materials:  Aluminum frame + Iron cover +
Diffuser panel (PC/PS/PMMA)
Color Tolerance:SDCM<5, Optional<3
Power Factor: >0.95
Lumen Output: 180lm~210/W
CRI (RA):  >80
LED Chips brand:   SANAN
LED Type: SMD4040/SMD2835
Color Temperature:3000K/4000K/6000K OptionaL
THD: <25%
Operating Temperature: -40 °C to +50 °C
IK rating:  IK06
IP rating:  IP40
Protection class IEC: Safety class II
Installation: Suspended + spliced/Surface-mounted ceiling/Spring clip
/Recessed mounted
House Color: White
Surge Protection: 2KV
Relative Humidity:Up to 90% RH
UGR:  <23


Application：

Brand flagship stores, shopping malls, supermarkets, exhibition halls, luxury hotels, conference rooms, office buildings, and commercial corridors.
