Commercial LED Square Surface Mounted Downlight | High-Lumen Architectural

Heavy-duty square surface mounted LED downlight engineered with a high-conductivity die-cast aluminum housing and advanced optical reflector. Delivers uniform, high-lumen downward illumination with exceptional heat dissipation, designed for high-ceiling transit hubs, industrial facilities, and specialized indoor plant growth supplementary lighting.

Key Specifications

    {pboot:if(High Lumen Output: Up to 100–120 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:30W/50W/60W/80W/120W
    Easy Install!='')}
  • check_circle High Lumen Output: Up to 100–120 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:30W/50W/60W/80W/120W
    Easy Install
  • {else}
  • No specifications available
  • {/pboot:if}
Features

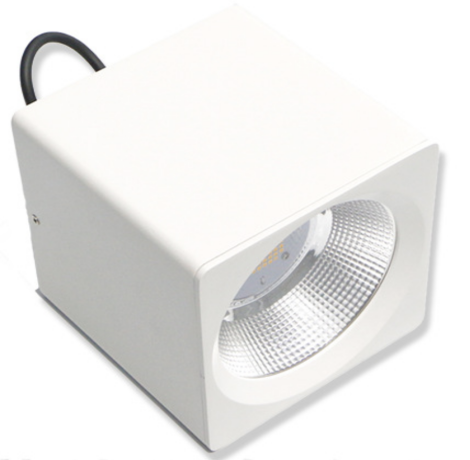

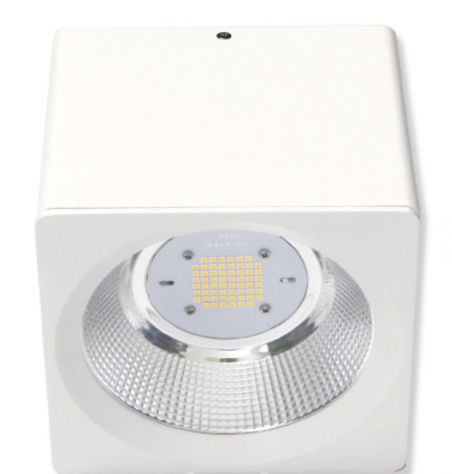

Product Name:  LED Square Surface Mounted Downlight
Input Voltage Range:   100V-277V AC
Life Span:              50,000+ Hours
Warranty:  5Years
Driver Brand:   SOSEN/LIFUD/MEANWELL
Dimmable: 0-10V dimming,DIP-switch selectable power, Supports motion sensing
Beam Angle: 60°/90°/110°
Materials:  Die-casting Aluminum House +Tempered glass Diffuser
Color Tolerance:SDCM<5, Optional<3
Power Factor: >0.95
Lumen Output: 120lm~150lm/W
CRI (RA):  >90
LED Chips brand:   LUMILEDS
LED Type: SMD3030
Color Temperature:3000K/4000K/6000K OptionaL
THD: <25%
Operating Temperature: -40 °C to +50 °C
IK rating: IK08
IP rating:  IP65
Protection class IEC: Safety class I
Installation: Surface/Pendant Mounted for Optional
House Color: White/Black
Reflector Color: Clear Lens
Surge Protection: 6KV
Relative Humidity:Up to 90% RH

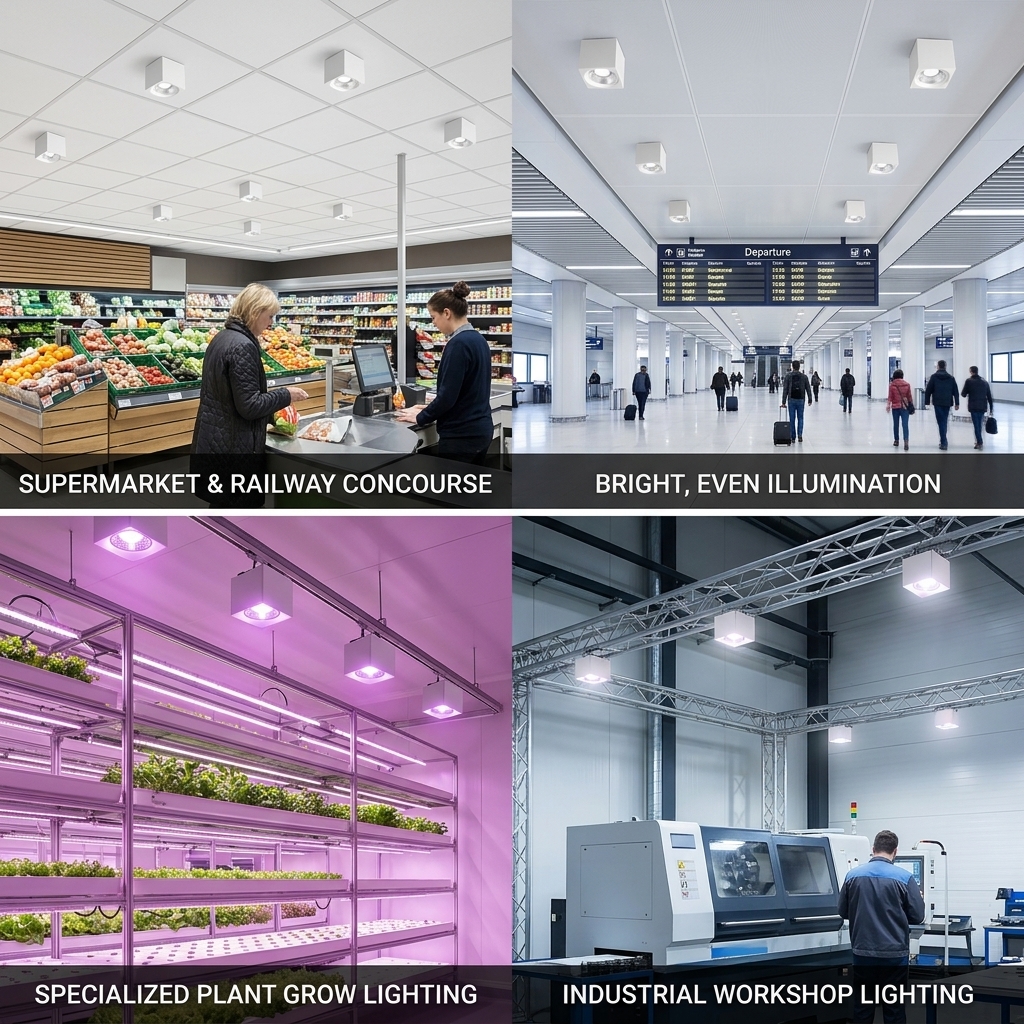

Application:

High-speed railway stations, transit concourses, warehouses, sports stadiums, manufacturing workshops, supermarkets, storage rooms, shopping malls, and indoor plant grow facilities.
