IP40 Recessed Frameless LED Spotlight | Trimless Indoor Architectural Downlight

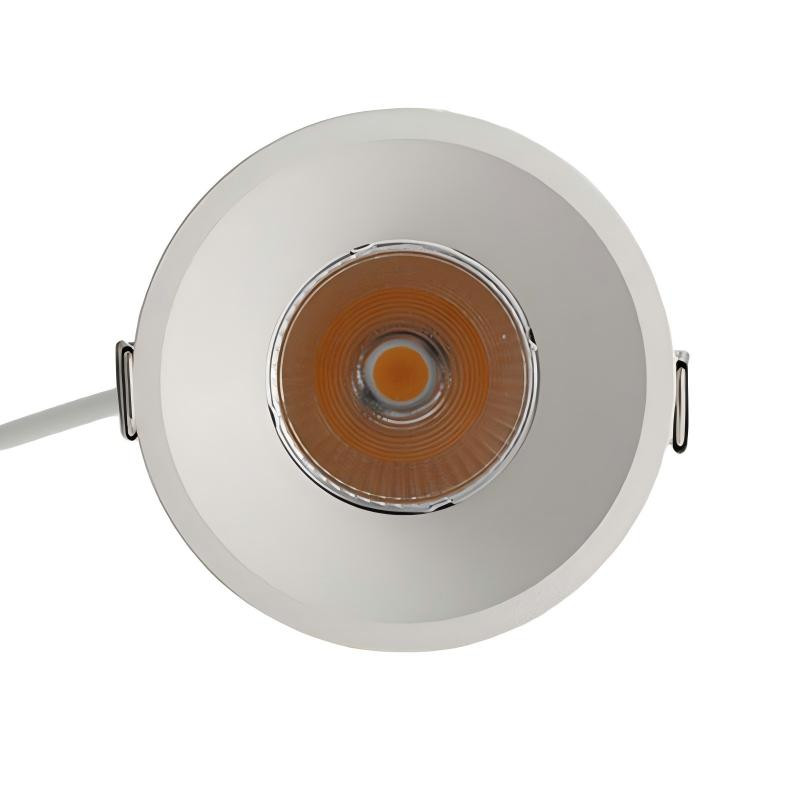

SOLARCUPID SS-DLFA (1).jpg

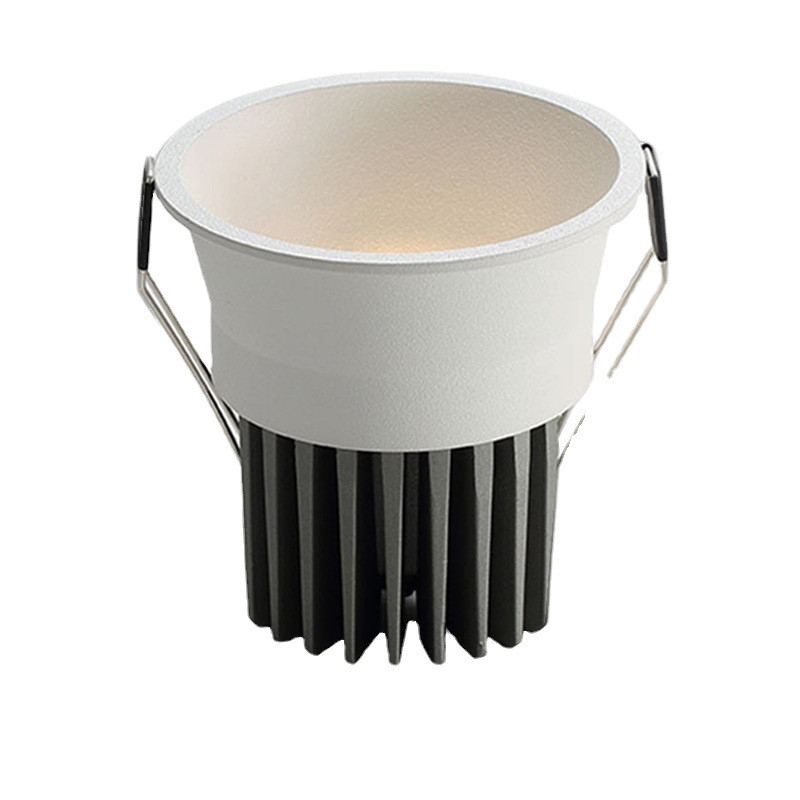

SOLARCUPID SS-DLFA (3).jpg
SOLARCUPID SS-DLFA (2).jpg
Down Light

IP40 Recessed Frameless LED Spotlight | Trimless Indoor Architectural Downlight

Minimalist trimless LED spotlight engineered for recessed plaster-in ceiling installation. Features an IP40 dust-resistant rating, deep-set anti-glare optics, and high CRI output, creating a seamless, borderless architectural aesthetic for high-end indoor spaces.

Key Specifications

    {pboot:if(High Lumen Output: Up to 100–120 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:7W/9W/12W/15W/18W/25W
    Easy Install!='')}
  • check_circle High Lumen Output: Up to 100–120 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:7W/9W/12W/15W/18W/25W
    Easy Install
    • {else}
  • No specifications available
    • {/pboot:if}
Inquire Now
Features
Product Name:  COB LED Frameless Spotlight
Input Voltage Range:   85V-265V AC
Life Span:              50,000+ Hours
Warranty:  5Years
Driver Brand:   LIFUD (External  IP40)
Dimmable: 0-10V/DALI Dimmable for optional
Beam Angle: 15°/24°/36°
Materials:  Die-casting Aluminum House +PMMA Diffuser
Color Tolerance:SDCM<5, Optional<3
Power Factor: >0.95
Lumen Output: 100lm/W
CRI (RA):  >80
LED Chips brand:   OSRAM/Bridgelux
LED Type: COB
Color Temperature:3000K/4000K/6000K OptionaL
THD: <25%
Operating Temperature: -40 °C to +50 °C
IK rating:  IK06
IP rating:  IP40
Protection class IEC: Safety class II
Installation: Recessed Mounted
House Color: White/Black
Reflector Color: White/Black
Surge Protection: 2KV
Relative Humidity:Up to 90% RH
UGR: <23

Application：

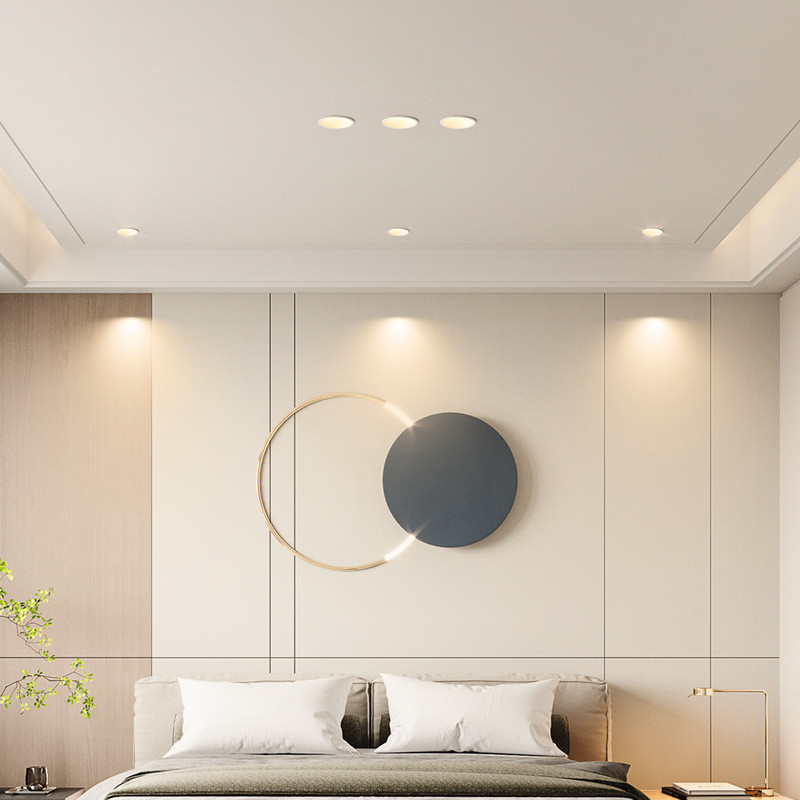

Luxury residential villas, brand retail boutiques, art galleries, high-end hotels, executive offices, and modern apartment living rooms.
