LED Stadium Light Square Shape

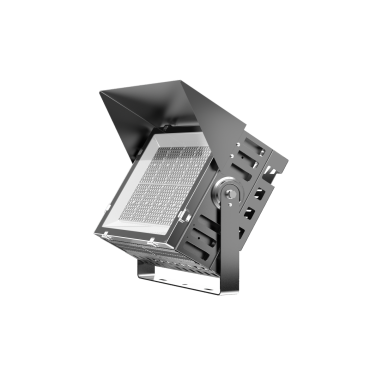

Square LED stadium light SOLARCUPID (3).png

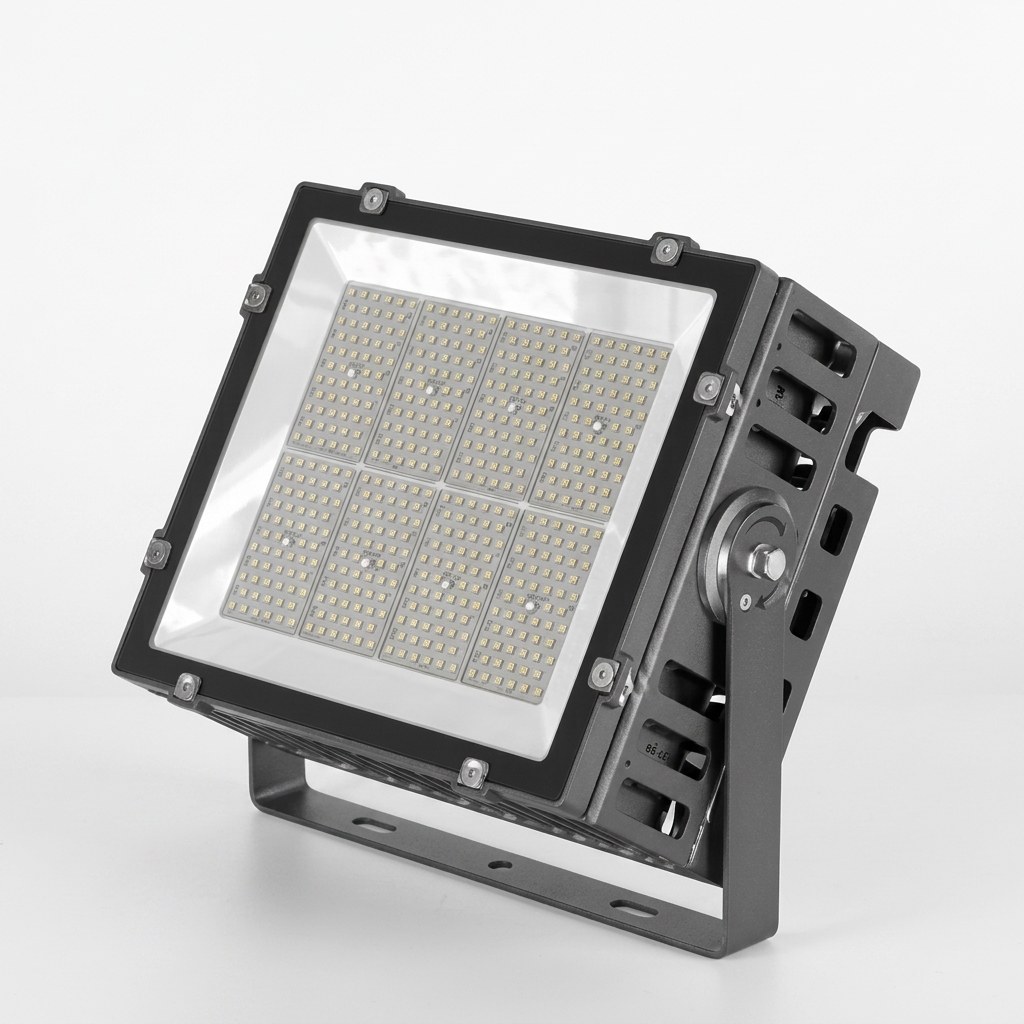

Square LED stadium light SOLARCUPID (1).png

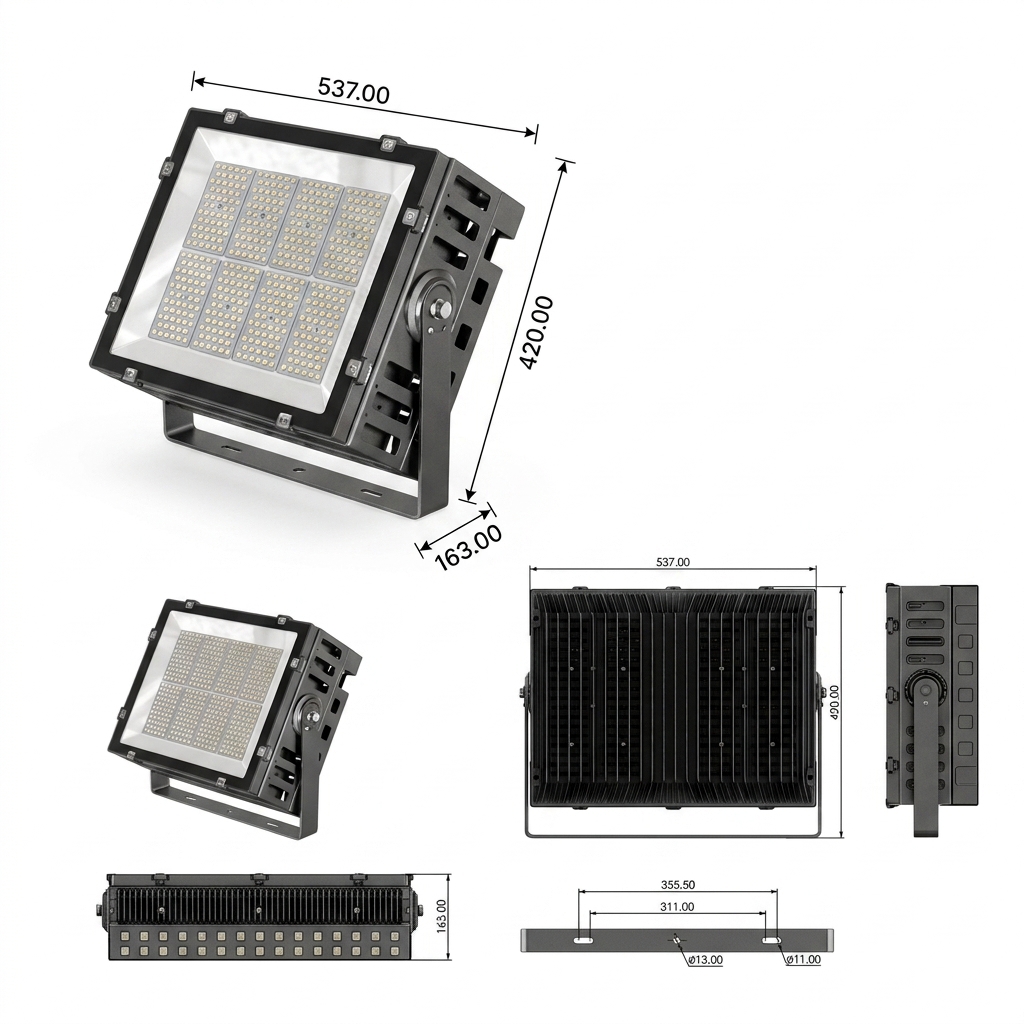

Square LED stadium light SOLARCUPID (4).png
Square LED stadium light SOLARCUPID (2).png
Stadium Light

LED Stadium Light Square Shape

The Square LED Stadium Light features a modular, heavy-duty design engineered for uniform large-scale illumination and precise beam control. Built with high-grade die-cast aluminum and independent optical modules, it delivers massive lumen output, high energy efficiency, and superior glare control for professional sports and commercial venues

Key Specifications

    {pboot:if(High Lumen Output: Up to 120–150 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:600W/800W/1000W/1200W
    Easy Install!='')}
  • check_circle High Lumen Output: Up to 120–150 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:600W/800W/1000W/1200W
    Easy Install
    • {else}
  • No specifications available
    • {/pboot:if}
Inquire Now
Features
Product Name:  LED Stadium Light Square Shape
Input Voltage Range:   100V-277V AC
Life Span:              50,000+ Hours
Warranty:  5Years
Driver Brand:   SOSEN/LIFUD/MEANWELL
Dimmable: 0-10V dimming
Beam Angle: 30°/60°/90°
Materials:  Die-casting Aluminum House +PC Diffuser
Color Tolerance:SDCM<5, Optional<3
Power Factor: >0.95
Lumen Output: 120lm~150lm/W
CRI (RA):  >80
LED Chips brand:   LUMILEDS
LED Type: SMD
Color Temperature:3000K/4000K/6000K OptionaL
THD: <25%
Operating Temperature: -40 °C to +50 °C
IK rating: IK06
IP rating:  IP65
Protection class IEC: Safety class I
Installation: Surface Mounted
House Color: Black
Reflector Color: Clear Lens
Surge Protection: 4KV
Relative Humidity:Up to 90% RH

Application：

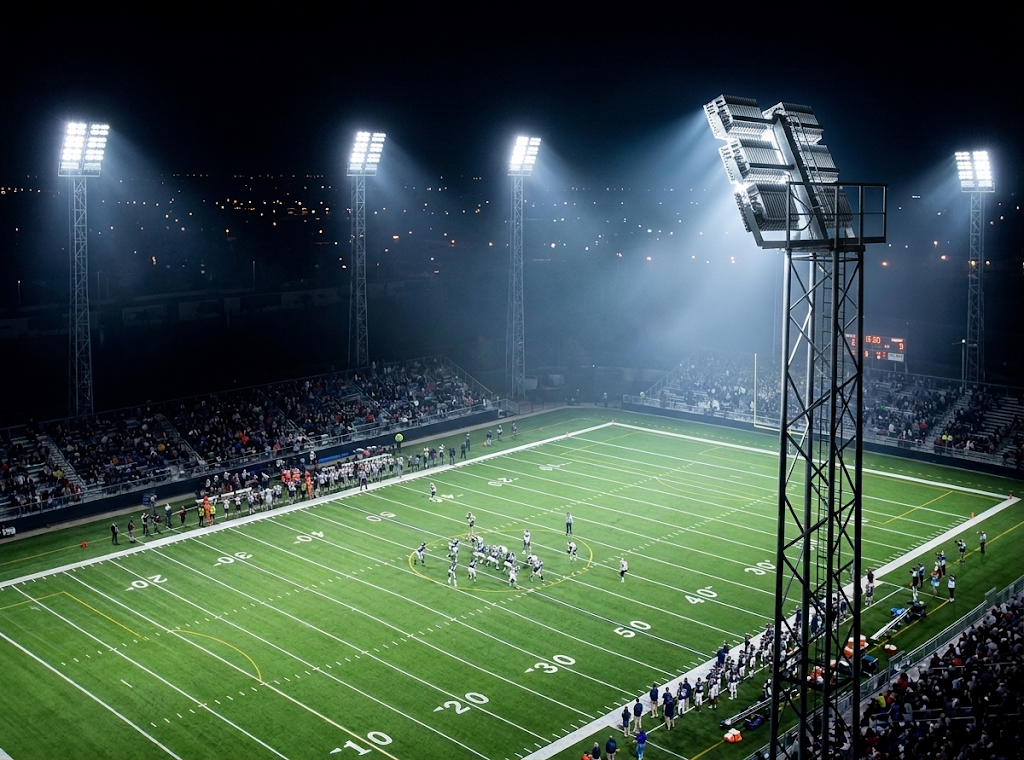

Perfect for multi-sport arenas, football stadiums, tennis and basketball courts, airport aprons, logistics yards, construction sites, and maritime docks requiring modular high-mast floodlighting.
