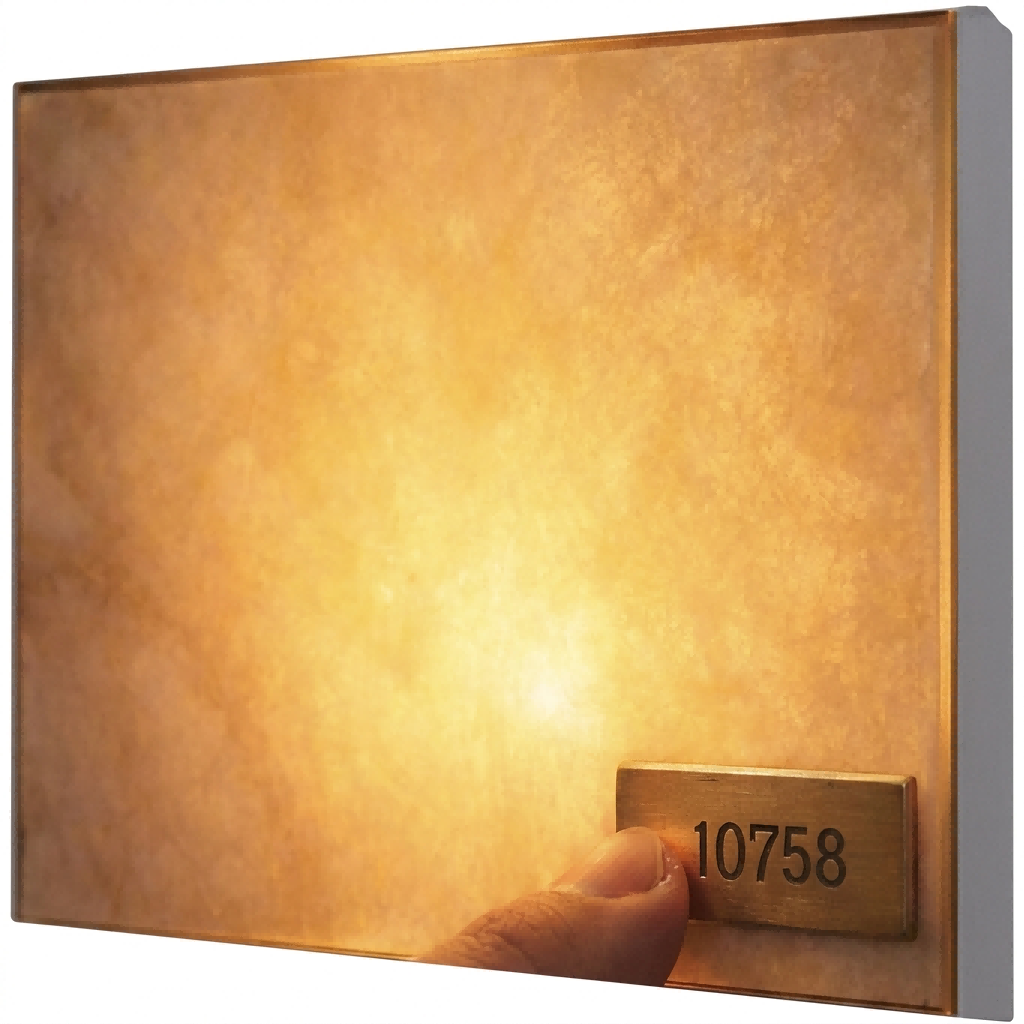

Touch Dimmable LED Wall Mounted Panel Light with 5-Minute Auto-Off Timer | Smart Interior Wall Lamp
Wall Light

Touch Dimmable LED Wall Mounted Panel Light with 5-Minute Auto-Off Timer | Smart Interior Wall Lamp

The 230V AC Touch Dimmable LED Wall Mounted Panel Light combines direct-mains AC operation, intuitive capacitive touch dimming, and an integrated 5-minute auto-off timer function. Featuring an ultra-slim, modern profile, it delivers soft, glare-free edge-lit illumination with seamless brightness control, eliminating the need for bulky external drivers or complex wall switches.

Key Specifications

    {pboot:if(High Lumen Output: Up to 100–120 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:3W
    Easy Install!='')}
  • check_circle High Lumen Output: Up to 100–120 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:3W
    Easy Install
  • {else}
  • No specifications available
  • {/pboot:if}
Features
Product Name:  LED Wall Mounted Panel Light
Input Voltage Range:   48V DC
Life Span:              50,000+ Hours
Warranty:  3Years

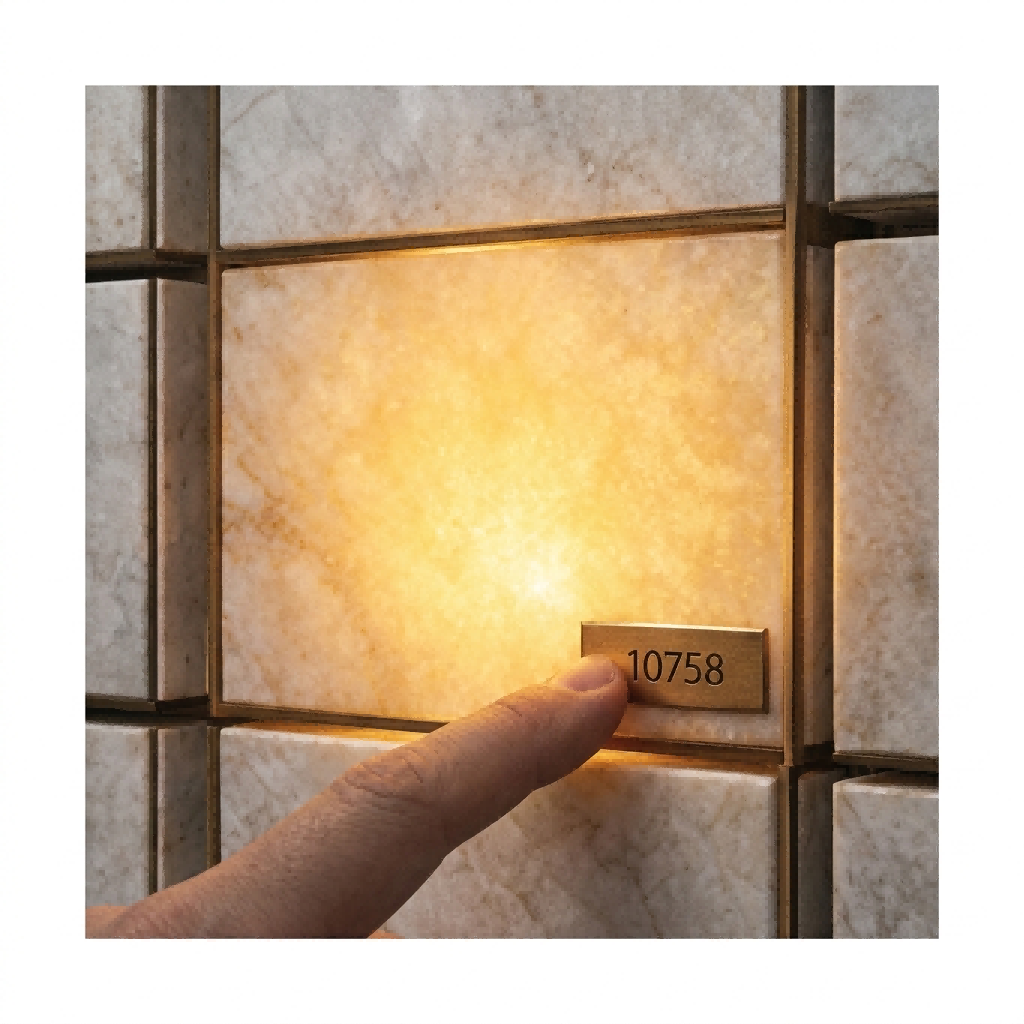

Dimmable:   Touch button, turnning off after 5mins.
Cable LengthCable of 500mm with male end connector
Cable garlandwith several female end connectors to be connected with 12V-48V DC
Materials:  Aluminum House +Onix stone/ALABASTER/Acrylic material for optional
Color Tolerance:SDCM<5, Optional<3
Power Factor: >0.90
Lumen Output: 100lm/W
CRI (RA):  >90
LED Chips brand:   EPISTAR
LED Type: SMD
Color Temperature:2400K
Wattage Rate3W
Operating Temperature: -40 °C to +50 °C
IK rating: IK02
IP rating:  IP20
Protection class IEC: Safety class II
Installation: Surface Mounted/Recessed mounted for optional
Surface finishPolished or sandblasted
Touch buttonInclude
EffectionCandle effect
Installation small metal piece: Included the installation of small metal piece 40mm*10mm*1mm
Driver Input Voltage230V AC with touch dimmable function turning off after 5mins

Application:

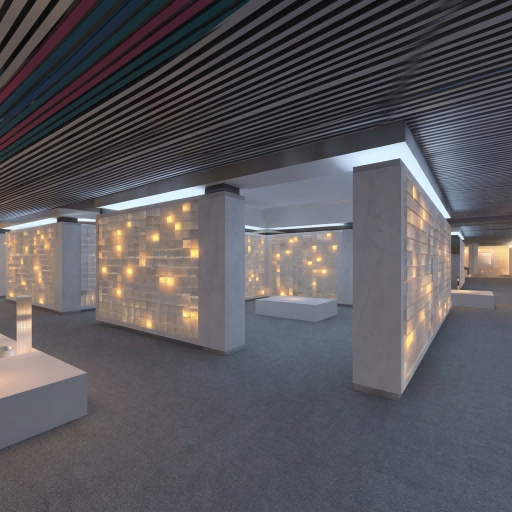

Ideal for hotel headboards and bedside reading, hospital/nursing home night lighting, residential bedrooms, hallways, stairwells, walk-in closets, study desks, and modern office focus booths
