3-Wattage & 2-CCT Selectable Square LED High Bay Light | Industrial Canopy & Warehouse Luminaire
LED CCT Selectable Highbay Light (3).png
LED CCT Selectable Highbay Light (1).png
LED CCT Selectable Highbay Light (2).png
LED CCT Selectable Highbay Light (4).png
Highbay Light

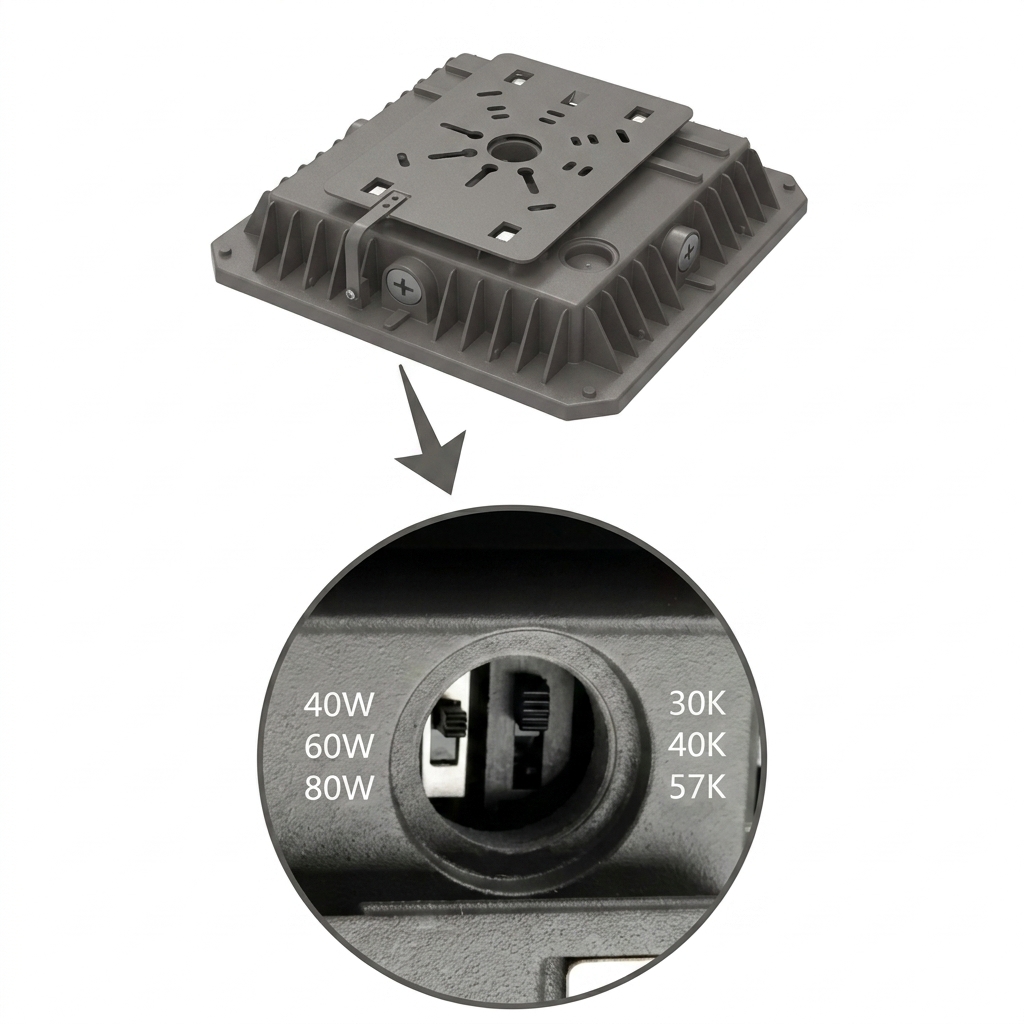

3-Wattage & 2-CCT Selectable Square LED High Bay Light | Industrial Canopy & Warehouse Luminaire

High-efficiency square LED high bay fixture engineered with field-adjustable 3-wattage switching and 2-CCT color tuning. Featuring a rugged die-cast housing and specialized optics, glare-controlled illumination for demanding industrial and commercial environments.

Key Specifications

    {pboot:if(High Lumen Output: Up to 100–120 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:100W
    Easy Install!='')}
  • check_circle High Lumen Output: Up to 100–120 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:100W
    Easy Install
  • {else}
  • No specifications available
  • {/pboot:if}
Features
Product Name:  LED CCT Selectable Highbay Light
Input Voltage Range:   90-305VAC
Life Span:              50,000+ Hours
Warranty:  5Years
Driver Brand:   SOSEN/LIFUD
Dimmable: 0-10V/DALI Dimmable (Optional)
Beam Angle: 120°
Materials:  Die-casting Aluminum House +PMMA Diffuser
Color Tolerance:SDCM<5, Optional<3
Power Factor: >0.95
Lumen Output: 130lm/W
CRI (RA):  >70
LED Chips brand:   EPISTAR/LUMILEDS
LED Type: SMD
Color Temperature:3000K/4000K/6000K OptionaL / 2 CCT Selectable
THD: <35%
Operating Temperature: -40 °C to +50 °C
IK rating:  IK10
IP rating:  IP65
Protection class IEC: Safety class I
Installation: Surface Mounted
House Color: Grey/Black
Reflector Color: Milky White/Frost
Surge Protection: CM: 10kV, DM: 6kV
Relative Humidity:Up to 90% RH
UGR: <23

Application:

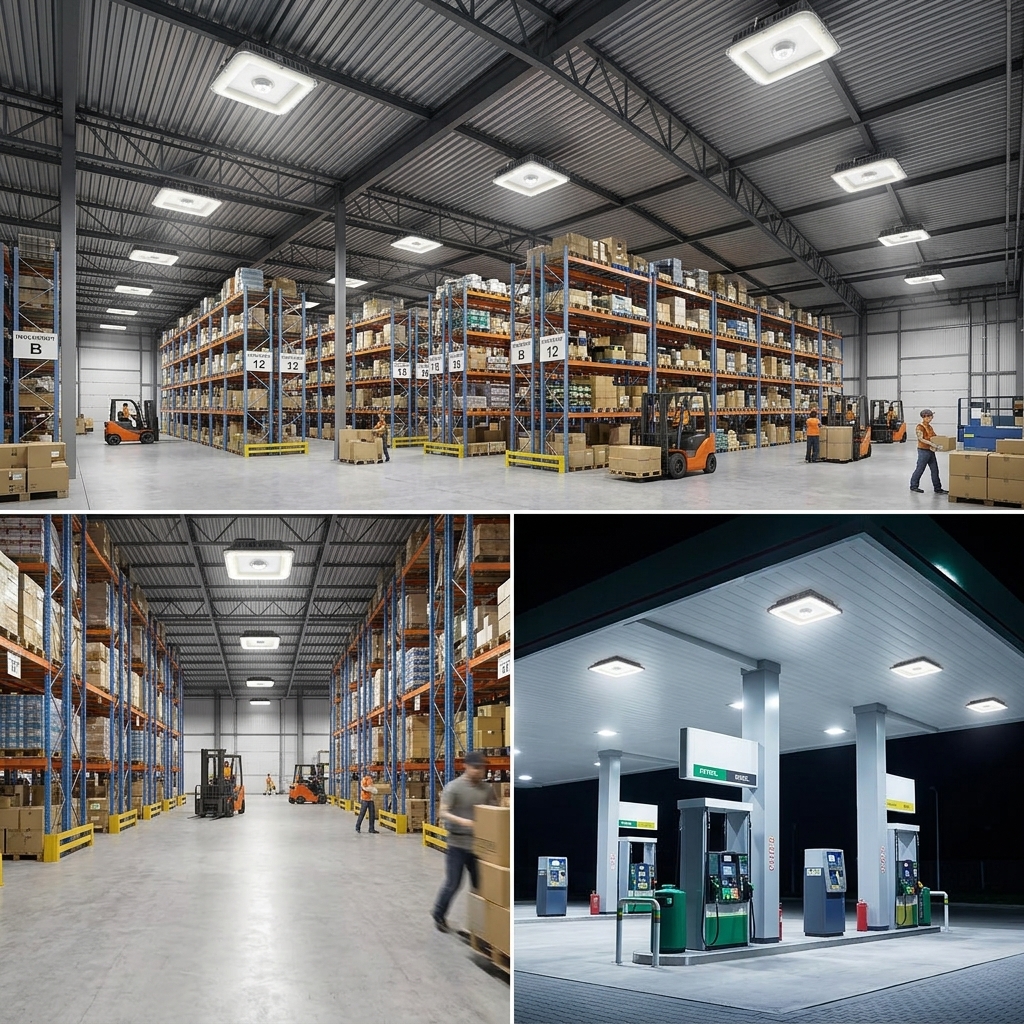

Industrial warehouses, logistics hubs, petrol/gas station canopies, freight terminals, and heavy-duty maintenance facilities.
