LED Linear Pendant Light

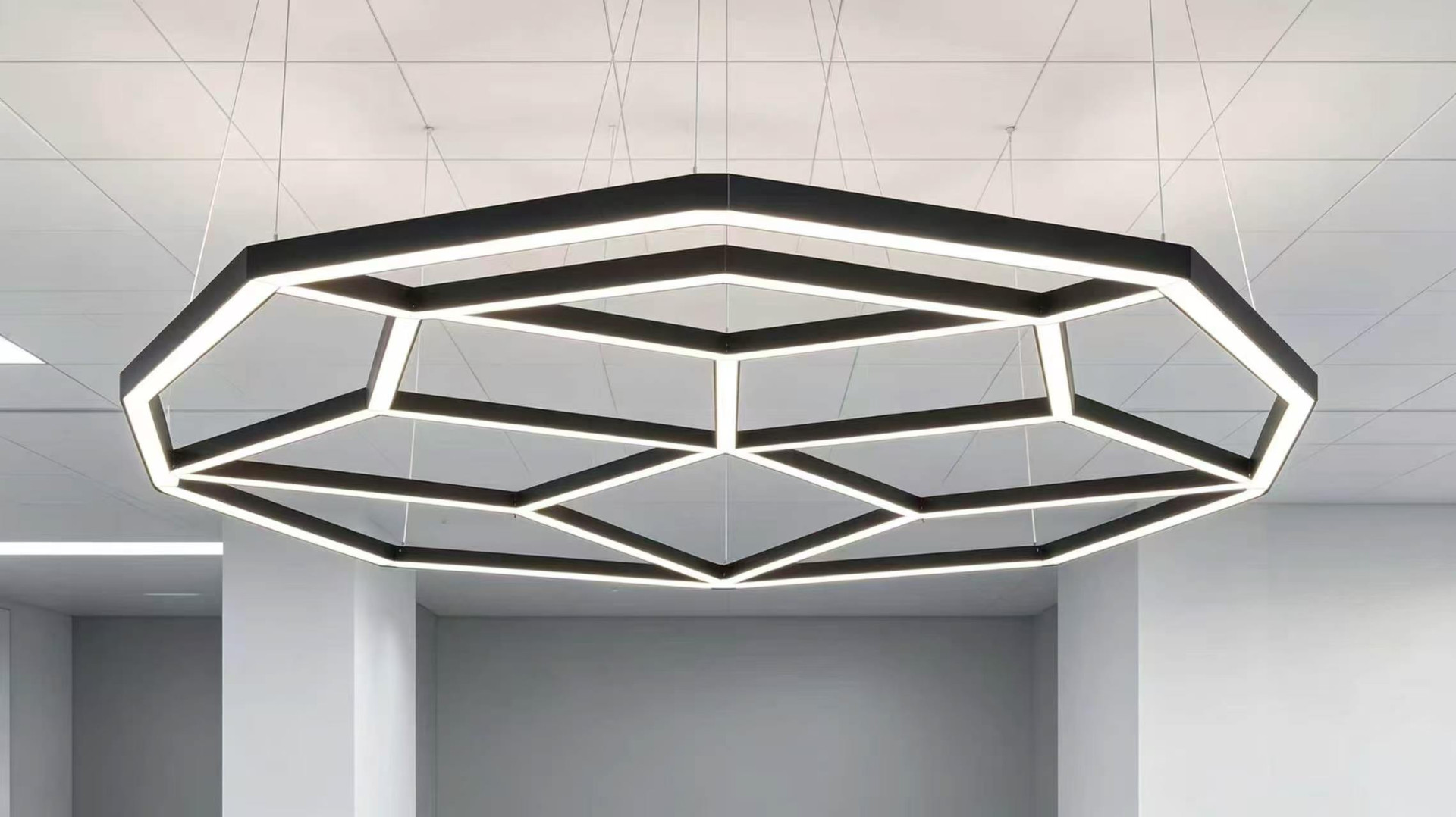

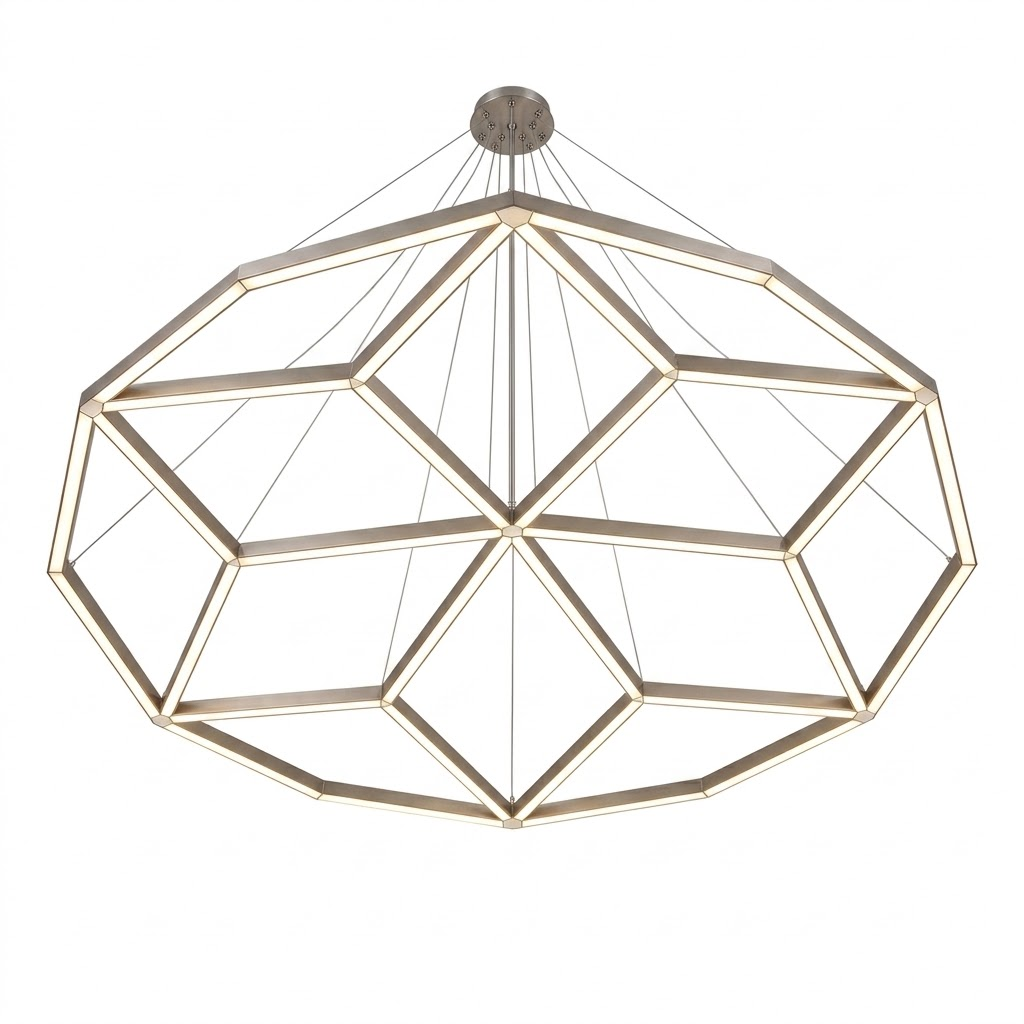

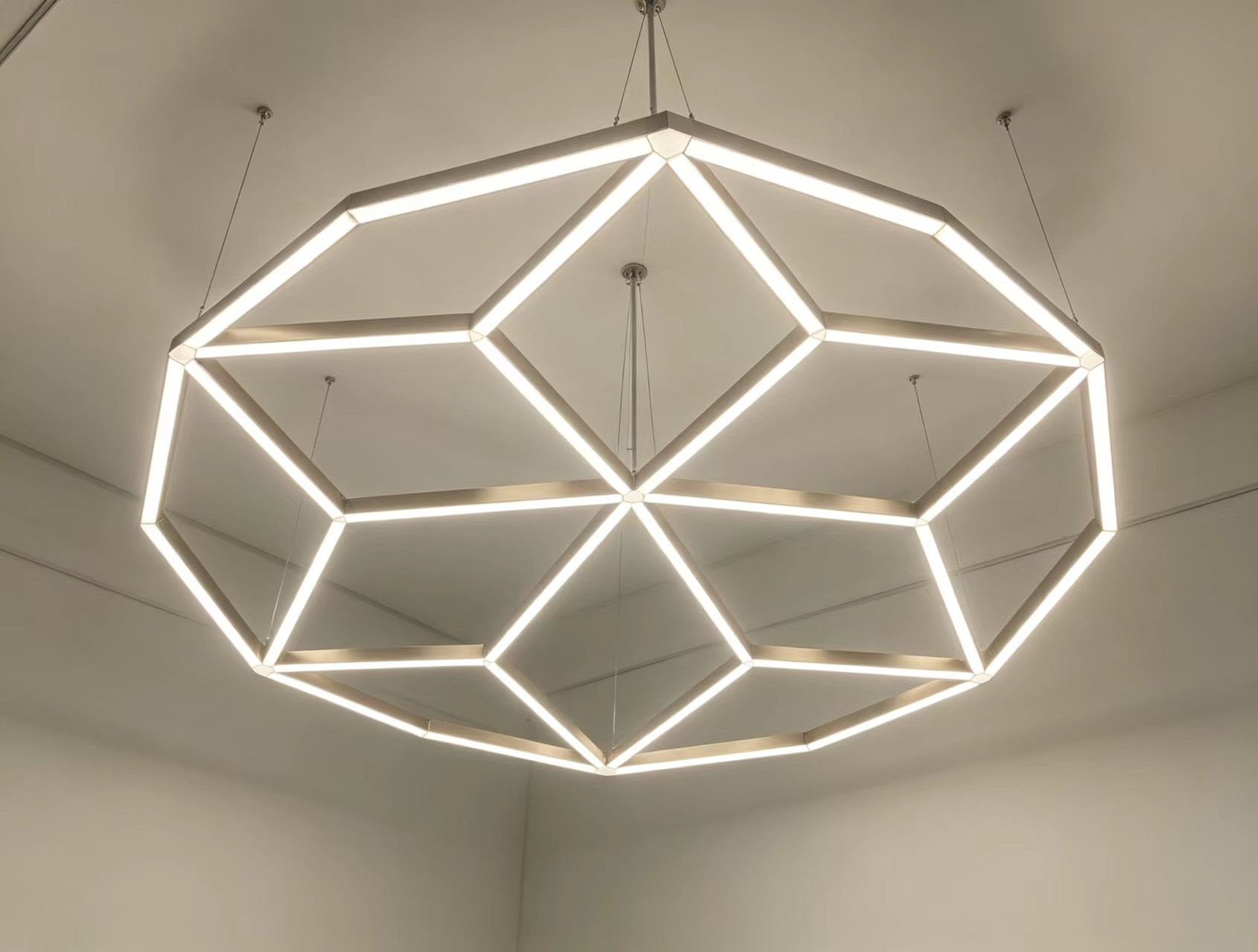

LED linear Pendant Light   SC-LPDL-550W.png
LED linear Pendant Light   SC-LPDL-550W (2).png
LED linear Pendant Light   SC-LPDL-550W.jpg
LED linear Pendant Light   SC-LPDL-550W (2).jpg
Linear Light

LED Linear Pendant Light

This LED Linear Pendant Light features a 20W/m power density and a modular design that supports flexible configurations—straight runs, L‑shapes, or custom lengths—to seamlessly adapt to various layouts and application needs.

Key Specifications

    {pboot:if(High Lumen Output: Up to 100–120 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:20W/meter
    Easy Install!='')}
  • check_circle High Lumen Output: Up to 100–120 lm/W
    Energy Efficient: Saves up to 90% energy
    Long Lifespan: 50,000 hours
    Premium LED Chips & Driver: Flicker-free, stable performance
    High CRI (≥80/90): True color rendering
    Color Temps: 3000K / 4000K / 6000K
    Power:20W/meter
    Easy Install
  • {else}
  • No specifications available
  • {/pboot:if}

Product name
LED Pendant Linear light
Life Span
50,000+ Hours
Warranty
5 years
Power Factor
>0.95
Power Supply Efficiency
> 90%
Input Voltage from Driver (v)
220-240V AC
Input Voltage to linear light (v)
24V DC
Frequency
50/60 Hz
Efficacy Rated (lm/w)
100
Color temperature
4000K
CRI (Ra)
 >90
Beam angle (°)
120°
Total Harmonic Distortion
< 15%
Protection class IEC
Safety class II
Operating Temperature
 -20°C ~ +50°C
Mech. impact protection code
IK02
Installation
Pendant/Suspended mount
LED type
SMD
LED chip brand
SANAN
Lamp body Materials
Aluminum House + PC diffuser
Driver
MEANWELL Driver  5pcs
Dimmable
0-10V or DALI dimmable
Color of House and Diffuser
Black
IP Rating
IP20
Lumen Output
55000lm
Pendant Steel Wire Dia. & Qty
16pcs Steel cables with 1.5mm Diameter
Connectors
Special manufacturing with CNC artworks
Whole fixture Diameter
3380mm




Model      SC-LPDL-550W
Watt (Rated)      550W
Size      Dia.: 3380mm x 50mm x 70mm
Pendant Height       2200mm


Application:

Ideal for supermarkets, warehouses, retail stores, showrooms, offices, schools, hospitals, parking garages, and exhibition halls.
